CSS Grid as a constraint system you declare and the browser solves

The one idea: you declare constraints, the browser solves them#

Most CSS Grid tutorials hand you a bag of properties. You learn fr, then minmax, then auto-fit, as if they were unrelated tricks. However, they are one system with one job. You describe a set of constraints, and the layout engine solves for a concrete arrangement.

That reframe matters, because it changes how you debug. When a layout looks wrong, you stop nudging pixels. Instead you ask which constraint you stated badly. Therefore CSS Grid as a constraint system is not a slogan. It is the mental model that makes every function below click into place.

The MDN CSS Grid layout guide lists the properties well. Yet a reference cannot give you the frame. So this post supplies the frame, then proves it on one real layout you can copy.

The layout we build once and evolve five times#

First, pick one artifact and carry it the whole way. Ours is a content dashboard, the kind every product ships. It has a sidebar, a header, a main region, a grid of widget cards, and a layered hero.

Below is the plain semantic markup. Notice there is no layout class yet, only meaning. This exact markup never changes again. Every stage rewrites the CSS around it, which is the entire point of treating CSS Grid as a constraint system.

<!-- The whole post evolves THIS markup. It never changes again.
     Semantic regions, in reading order, with no layout classes yet. -->
<div class="dashboard">
  <header class="db-header">Account overview</header>
  <nav class="db-sidebar">Primary navigation</nav>
  <main class="db-main">
    <section class="db-widgets"><!-- widget cards live here --></section>
  </main>
  <footer class="db-footer">Sync status</footer>
</div>

Read the DOM as reading order, not as layout. The sidebar comes first in the source, yet it can sit anywhere on screen. Because the area map decides position, the markup stays honest for screen readers while the grid arranges the pixels.

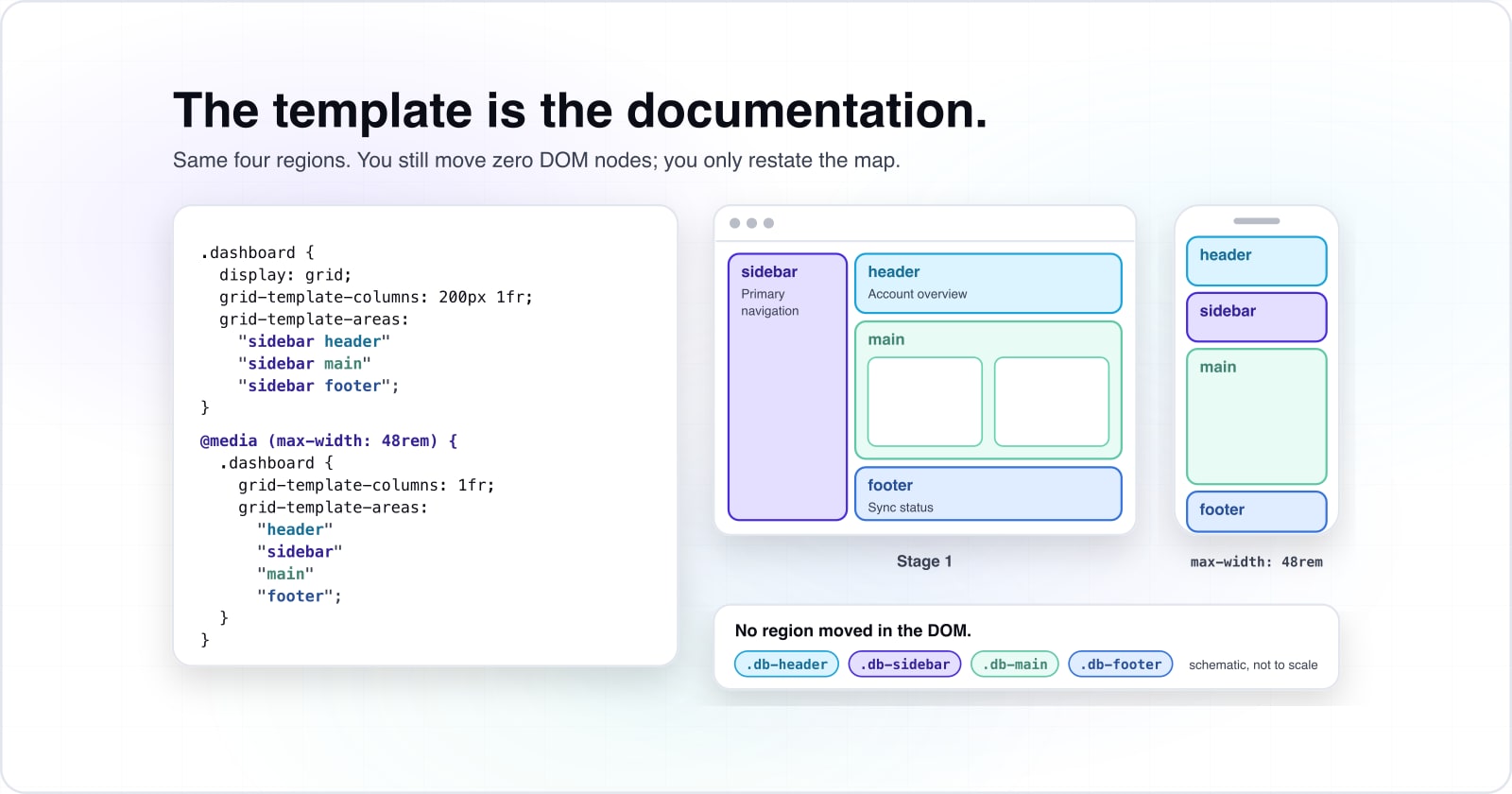

Stage 1. Name the layout: grid-template-areas as an ASCII blueprint#

Start by naming the frame. Named areas let you draw the layout as ASCII art, so the CSS reads like a picture of the page. This is the self-documenting trick that references mention but rarely build on.

The template is the documentation#

Here is Stage 1 on our dashboard. Each region gets a name, then the template paints the frame. You can read the arrangement at a glance, with no comment needed.

/* Name each region once, then draw the frame as ASCII art. The template
   IS the documentation: you can read the layout without a comment. */
.dashboard {
  display: grid;
  grid-template-columns: 200px 1fr;
  grid-template-rows: auto 1fr auto;
  grid-template-areas:
    "sidebar header"
    "sidebar main"
    "sidebar footer";
  min-height: 100vh;
}

/* Each region claims its name. The order in the DOM no longer decides
   the position; the area map does. */
.db-sidebar { grid-area: sidebar; }
.db-header  { grid-area: header; }
.db-main    { grid-area: main; }
.db-footer  { grid-area: footer; }

Look at the grid-template-areas block. The word sidebar repeats down the first column, so the sidebar spans all three rows. Because the names carry the intent, you write far fewer brittle selectors. That keeps your stylesheet clear of the same specificity discipline that trips people up with :focus-visible.

Re-arrange by redefining areas, not by moving DOM#

Now the payoff. A layout built from named areas re-arranges when you redefine the map, not when you reorder the document. The demo below proves it. Flip the breakpoint and watch the same four regions snap to a new position.

grid-template-columns: 200px 1fr;
grid-template-areas:
  "sidebar header"
  "sidebar main"
  "sidebar footer";

grid-template-columns: 160px 1fr;
grid-template-areas:
  "header  header"
  "sidebar main"
  "footer  footer";

grid-template-columns: 1fr;
grid-template-areas:
  "header"
  "sidebar"
  "main"
  "footer";

Notice what did not happen. No region moved in the DOM. No JavaScript reshuffled nodes. Instead each breakpoint stated a different area map, and the browser solved the rest. That is declarative layout: you change the description, and the engine changes the result.

Stage 2. Stop guessing widths: the intrinsic-sizing toolkit#

In practice, fixed pixel widths are the fragile part of most layouts. They break the moment content or the viewport disagrees with your guess. So Stage 2 replaces every fixed width with a function that states a constraint instead. Then the browser solves the widths.

minmax, fr, and the fraction that does the solving#

Here is the same dashboard with its fixed columns gone. The 200px sidebar becomes a stated range. The flexible column becomes a fraction of the free space.

/* Stage 2: delete every fixed pixel width. State a RANGE and a fraction,
   then let the browser solve the columns. */
.dashboard {
  display: grid;
  /* The sidebar was 200px. Now it is "never below 12rem, never above 15rem". */
  grid-template-columns: minmax(12rem, 15rem) minmax(0, 1fr);
  grid-template-rows: auto minmax(0, 1fr) auto;
  /* The gap itself flexes with the viewport. */
  gap: clamp(0.75rem, 2vw, 1.5rem);
}

Read minmax(12rem, 15rem) aloud. It says the sidebar is never below 12rem and never above 15rem. Meanwhile minmax(0, 1fr) says the main column takes whatever is left, down to nothing. The fr unit is the fraction that does the solving, because it distributes free space after the fixed and ranged tracks are placed. The MDN minmax reference covers the edge cases.

Each function replaces a brittle hack: the reasoning table#

In practice, these intrinsic functions are scattered across the docs, so they feel unrelated. In truth each one replaces a specific fragile hack. Read the table as one reasoning system, not six tricks.

Every row states a constraint instead of a guess. Therefore the browser can solve the width at any container size. That is the whole shift from fighting the layout to describing it.

Stage 3. Reflow without a single media query: auto-fit + minmax#

This is the heart of the post. The widget grid inside main should add and drop columns as it resizes. Most guides show the one-liner but skip the model. So here is both, then the live proof, then the honest exception.

The RAM one-liner, read as a sentence#

One declaration makes the widget grid responsive with no breakpoint. It is often called the RAM pattern, for repeat, auto-fit, minmax.

/* Stage 3: the widget grid inside main. ONE declaration, no breakpoints. */
.db-widgets {
  display: grid;
  grid-template-columns: repeat(auto-fit, minmax(200px, 1fr));
  gap: 16px;
}

Read it as plain English. It says: as many equal columns as fit, each at least 200px wide, sharing the leftover space. Because the constraint is complete, the browser adds a column when the container grows and drops one when it shrinks. This is the responsive performance work that goes beyond media-query breakpoints, which our 2026 site optimization guide treats in depth. The MDN repeat reference documents the keywords.

auto-fit vs auto-fill: the empty-track difference, with real numbers#

Now the one distinction most guides get thin. auto-fit and auto-fill count tracks the same way. They differ only in what they do with an empty track. Rather than describe it, drag the numbers and watch it.

First, work the default numbers by hand to trust the demo. With a 1000px container, a 200px min-track, and a 16px gap, the browser computes floor((1000 + 16) / (200 + 16)), which is floor(1016 / 216), which is four tracks. So four columns fit.

Now place only three cards. With auto-fill, the browser keeps the fourth empty track, so each track is (1000 minus 48) / 4, which is 238px. The three cards render at 238px with a trailing empty 238px column. With auto-fit, the empty track collapses to zero, so the three cards share the full width at (1000 minus 32) / 3, which is 322.67px each. That single collapse is the entire real difference.

The one honest media query: redefine the areas at a breakpoint#

Intellectual honesty matters, so name the exception. There is one place a media query is still the right tool. It is redefining the page skeleton, not a width.

/* The ONE honest media query left in the whole layout. It redefines the
   SKELETON, not a width. You are changing WHICH region sits WHERE, and no
   intrinsic function can express that rearrangement. */
@media (max-width: 48rem) {
  .dashboard {
    grid-template-columns: 1fr;
    grid-template-areas:
      "header"
      "sidebar"
      "main"
      "footer";
  }
}

Stage 4. Line up nested cards with subgrid (Baseline in 2026)#

The widget cards have a title, a body, and a footer. Left alone, each card sizes its own rows, so footers drift out of line across the row. Subgrid fixes that by letting the cards share the parent grid's rows. In 2026 you can treat it as production-ready.

Subgrid browser support in 2026#

Card titles and footers that align across the grid#

Next, compare the two approaches directly. The first tab lets each card own its rows, so the footers land at different heights. The second tab shares the parent rows with subgrid, so every title and footer snaps to one baseline.

/* Before subgrid: each card owns its own rows. A long title in one card
   pushes its footer down, so footers across the row never line up. The cards
   do not agree on a shared baseline. */
.widget {
  display: grid;
  grid-template-rows: auto 1fr auto; /* title / body / footer, per card */
}

/* After subgrid: define the three rows ONCE on the widget grid. Each card
   opts into the parent tracks with subgrid, so every title, body, and footer
   aligns across the entire row. The cards now share one baseline. */
.db-widgets {
  display: grid;
  grid-template-columns: repeat(auto-fit, minmax(200px, 1fr));
  grid-auto-rows: auto;
  gap: 16px;
}

.widget {
  display: grid;
  grid-row: span 3;            /* occupy title, body, and footer rows */
  grid-template-rows: subgrid; /* inherit the parent's row tracks */
}

That change is small but load-bearing. You define the three rows once on the parent, then each card inherits them with grid-template-rows: subgrid. Because the tracks are shared, alignment stops being a per-card fight. This is exactly the discipline behind scalable UI components built on a consistent layout contract, where cards must agree on a shared rhythm.

Stage 5. Layer the hero by stacking one grid cell#

The last stage is the one nobody teaches as a first-class pattern. A layered hero puts an image, a scrim, and copy on top of each other. The old way reaches for absolute positioning. The grid way is calmer: place every child in the same cell.

/* Stage 5: the layered hero. Every child shares ONE cell, so they stack
   like layers in a design tool. z-index and place-self order them. No
   absolute positioning, no negative margins. */
.hero {
  display: grid;
  grid-template-areas: "stack";
  min-height: 22rem;
}

/* The load-bearing line: all children occupy the SAME 1 / 1 cell. */
.hero > * {
  grid-area: stack;
}

.hero__image { z-index: 0; inline-size: 100%; block-size: 100%; object-fit: cover; }
.hero__scrim { z-index: 1; background: linear-gradient(transparent, rgba(0, 0, 0, 0.55)); }
.hero__copy  { z-index: 2; place-self: end start; color: #fff; padding: 1.5rem; }

Read the load-bearing line. Every child gets grid-area: stack, so they all occupy the same 1 / 1 cell. Then z-index orders them front to back, and place-self positions the copy in a corner. Because the cell contains them, you never fight offsets or negative margins. In short, overlapping becomes declarative layering.

Grid or flexbox? A 2D-vs-1D decision you can reuse#

The most common question deserves a reusable answer, not a shrug. CSS Grid places items on two axes at once. Flexbox flows content along one. So the choice follows from the shape of the problem, not from taste.

In short, keep the table close and the rule stays simple. Grid describes a frame, and flexbox flows a line. Often you use both, with grid for the page and flexbox inside a cell.

When NOT to reach for Grid#

There is one more trap to name. Do not overuse named areas for a layout with a single obvious column. A one-column stack needs no template; a plain block flow already reads clearly. In the end, the toolkit is a set of tools, not a ranking to climb.

CSS Grid as a constraint system, in one screen#

Finally, close the loop by stacking the stages back onto one artifact. The dashboard now names its frame, sizes its tracks with intrinsic functions, reflows its widgets with auto-fit, aligns its cards with subgrid, and layers its hero in a single cell. One layout carries the whole toolkit.

/* The one dashboard, now carrying all five stages at once. */
.dashboard {
  display: grid;
  grid-template-columns: minmax(12rem, 15rem) minmax(0, 1fr);
  grid-template-areas:
    "sidebar header"
    "sidebar main"
    "sidebar footer";
  gap: clamp(0.75rem, 2vw, 1.5rem);
}

/* Stage 3: the widgets reflow with no media query. */
.db-widgets {
  display: grid;
  grid-template-columns: repeat(auto-fit, minmax(200px, 1fr));
  gap: 16px;
}

/* Stage 4: nested card rows align across the row via subgrid. */
.widget { grid-row: span 3; grid-template-rows: subgrid; }

/* Stage 5: the hero layers three children in a single cell. */
.hero { display: grid; grid-template-areas: "stack"; }
.hero > * { grid-area: stack; }

/* Stage 3, the honest exception: redefine the SKELETON at one breakpoint. */
@media (max-width: 48rem) {
  .dashboard {
    grid-template-columns: 1fr;
    grid-template-areas: "header" "sidebar" "main" "footer";
  }
}

Read the final CSS as five constraints, not five hacks. Each block states a rule, and the browser solves the rest across every screen. That is what it means to treat CSS Grid as a constraint system: you declare, and the layout engine does the solving. The CSS Grid Level 2 specification defines every function you used here, subgrid included.
